Building the Ultimate DIY Sim Racing Wheel (Part 1: HYP-R Project Overview)

Two builds. One Project. Full DIY guide series.

Watch The Video

Overview

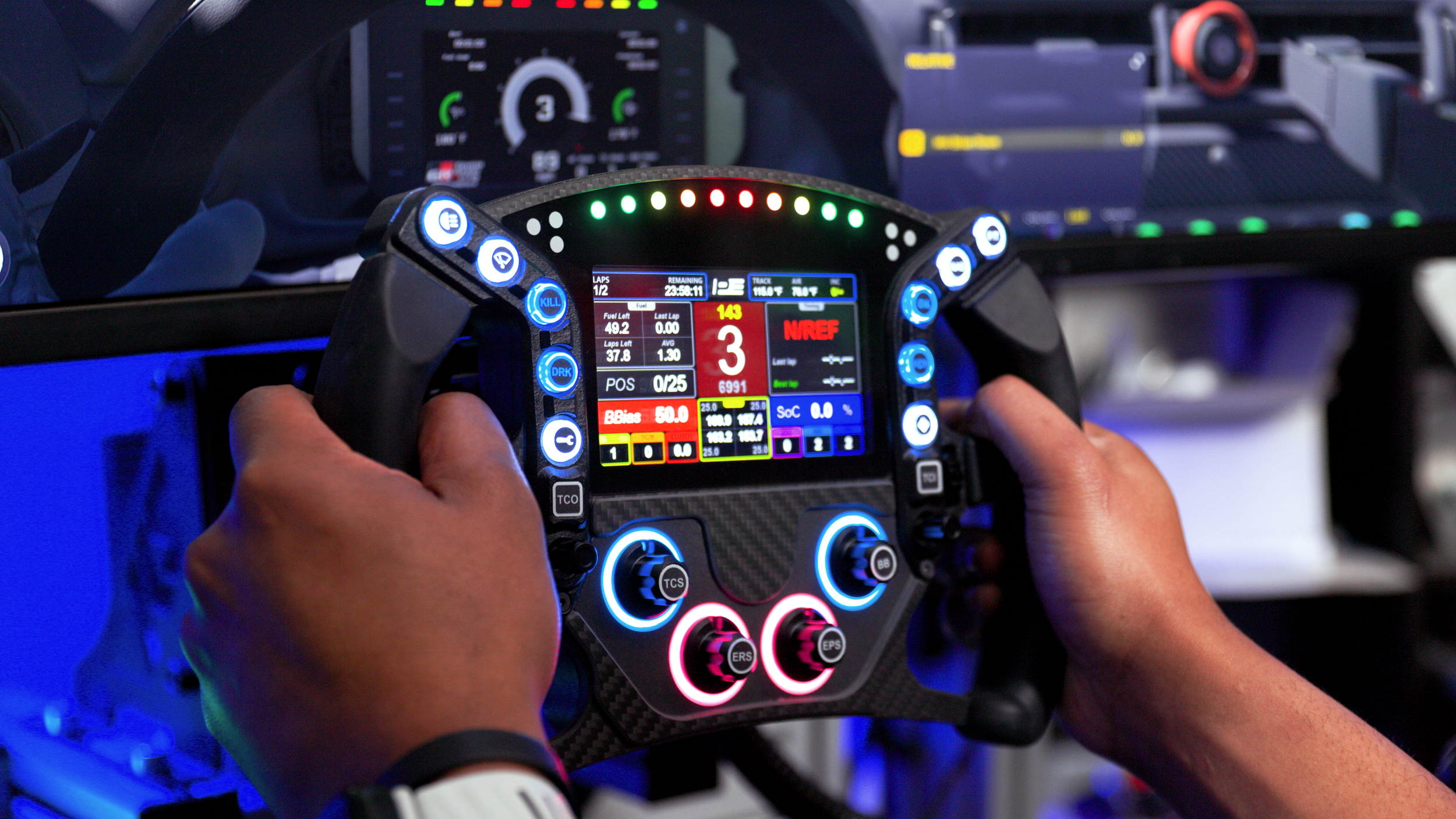

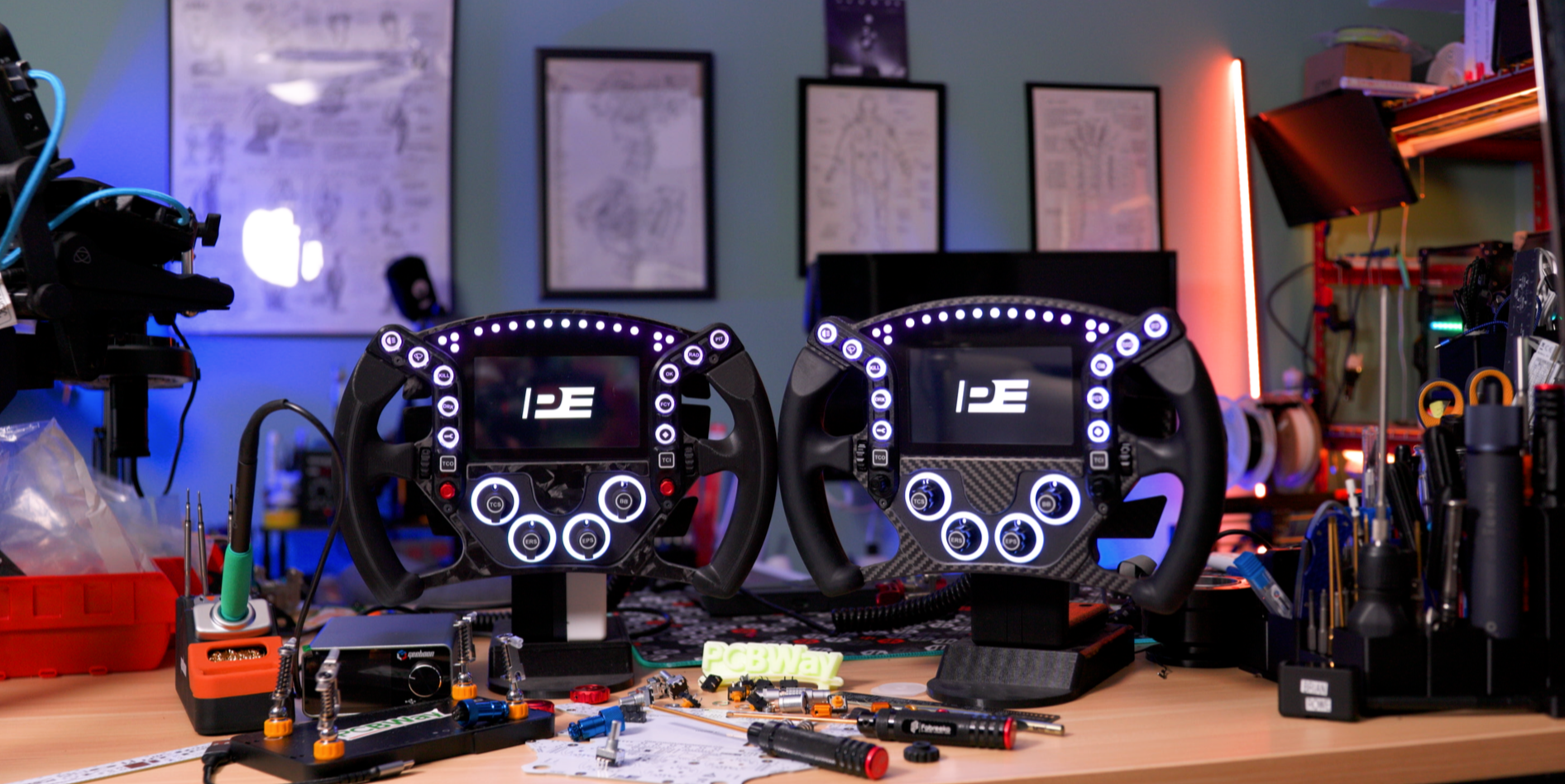

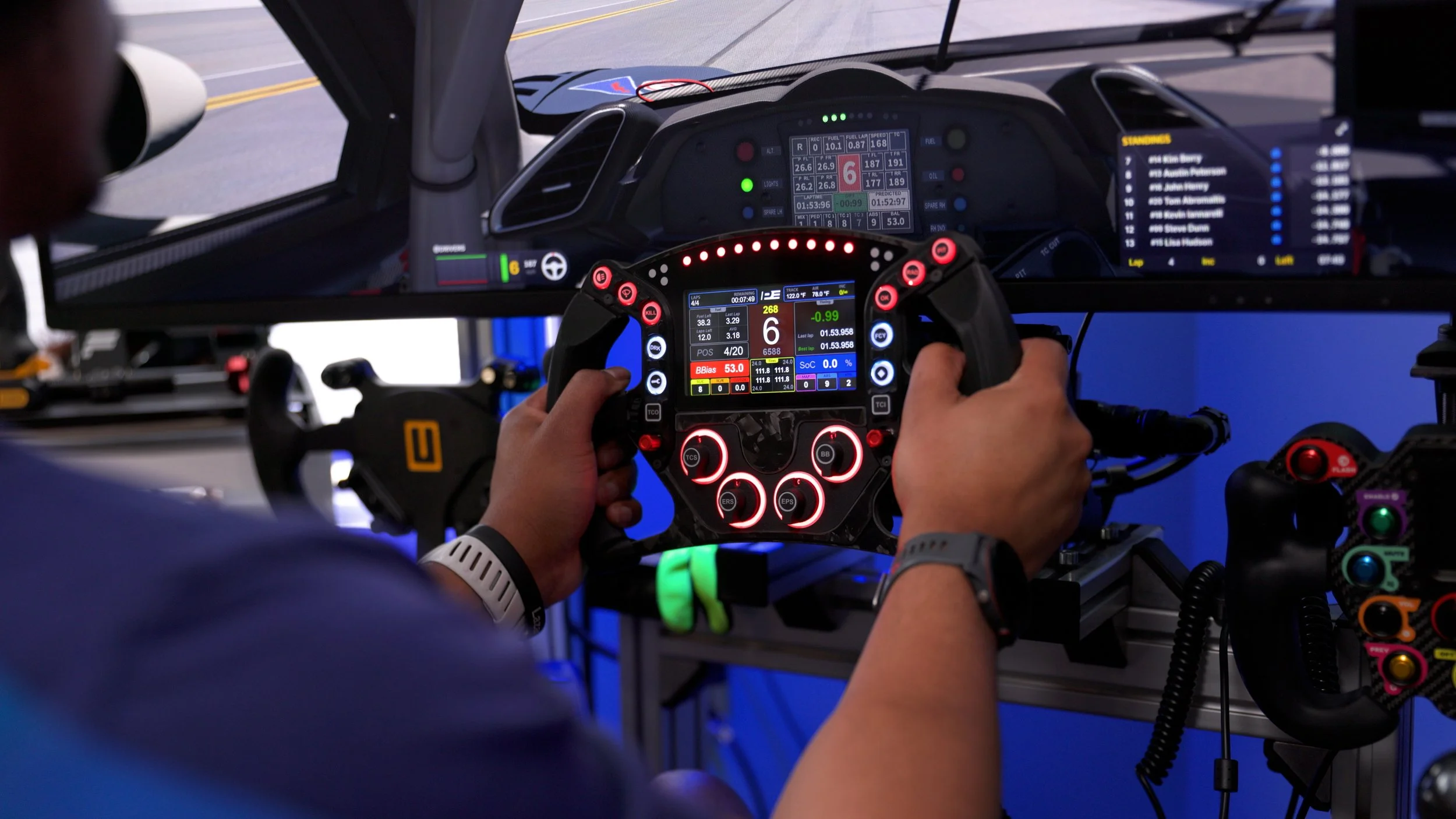

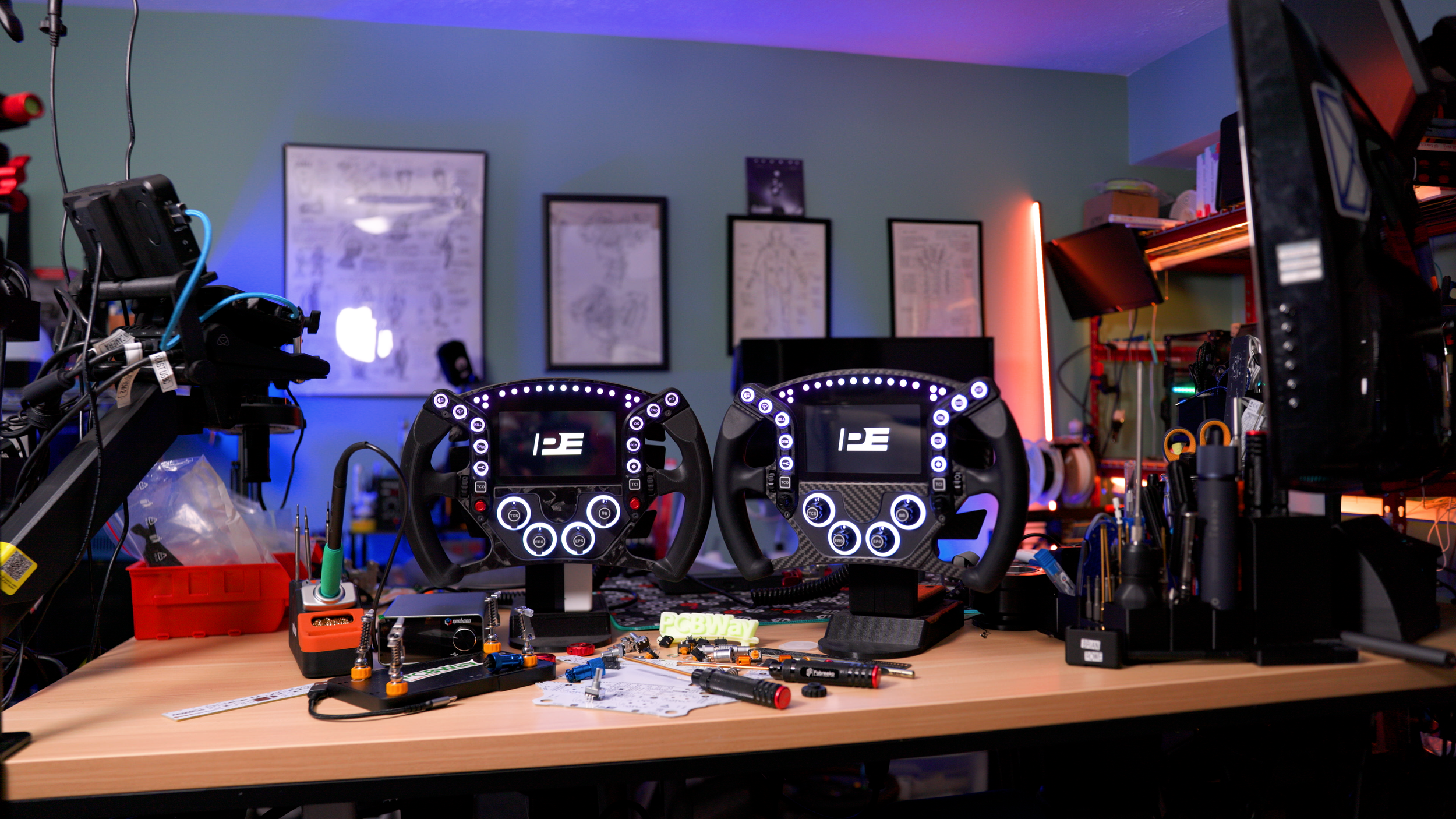

In this project, I’m building two versions of the Pokornyi Engineering HYP-R DIY sim racing wheel:

  • A high-end build using premium parts and high-quality manufacturing

  • A budget / hybrid build using FDM prints and self-sourced components

This page contains:

  • All parts and links from the video

  • Additional notes and recommendations

  • Build photos and references

Parts & Links

Note: Some links may be affiliate links. They help support the channel at no additional cost to you.

3DP

Part Option 1 Option 2
3D Printing Service (HQ Parts) PCBWay - View
ABS Filament Polymaker - View
PLA Filament Polymaker - View

Electronics

Part Option 1 Option 2
Vocore Display Vocore - View PE - View
Weipu (Wheel side) Aliexpress - View PE - View
Weipu (Cable side) Aliexpress - View PE - View
GX12 (Wheel side w/JST) Aliexpress - View PE - View
GX12 (Cable side) Aliexpress - View
Rotary Encoders Aliexpress - View (20 Detents not 16) Digikey - View
Shifter Switch Aliexpress - View Digikey - View
Clutch Sensor Aliexpress - View Digikey - View
Rear Button Aliexpress - View
JST (XH) Pigtails + PCB Side (2/3/4P) Aliexpress - View
Display Cable (USB W/ Data) Aliexpress - View
Button Caps (clear) Aliexpress - View
Coiled USB Cable (w/ twisted data) PE - View
HYP-R PCB PCBWay - View PE - View
Funky Switch Aliexpress - View Digikey - View
Face Buttons Aliexpress - View Digikey - View
USB A PCB Connector Aliexpress - View Digikey - View
Programming Pin Headers Aliexpress - View

CNC/Extras

Part Option 1 Option 2
CNC Enclosure PE - View
CNC Clutches PE - View
CNC Shifters PE - View
CNC/PC Button Guards PE - View
CNC 70mm Spacer PE - View Aliexpress - View
CNC Rotary Knobs PE - View Aliexpress - View
CNC Side Knobs PE - View Aliexpress - View
CNC Funky Knobs PE - View Aliexpress - View

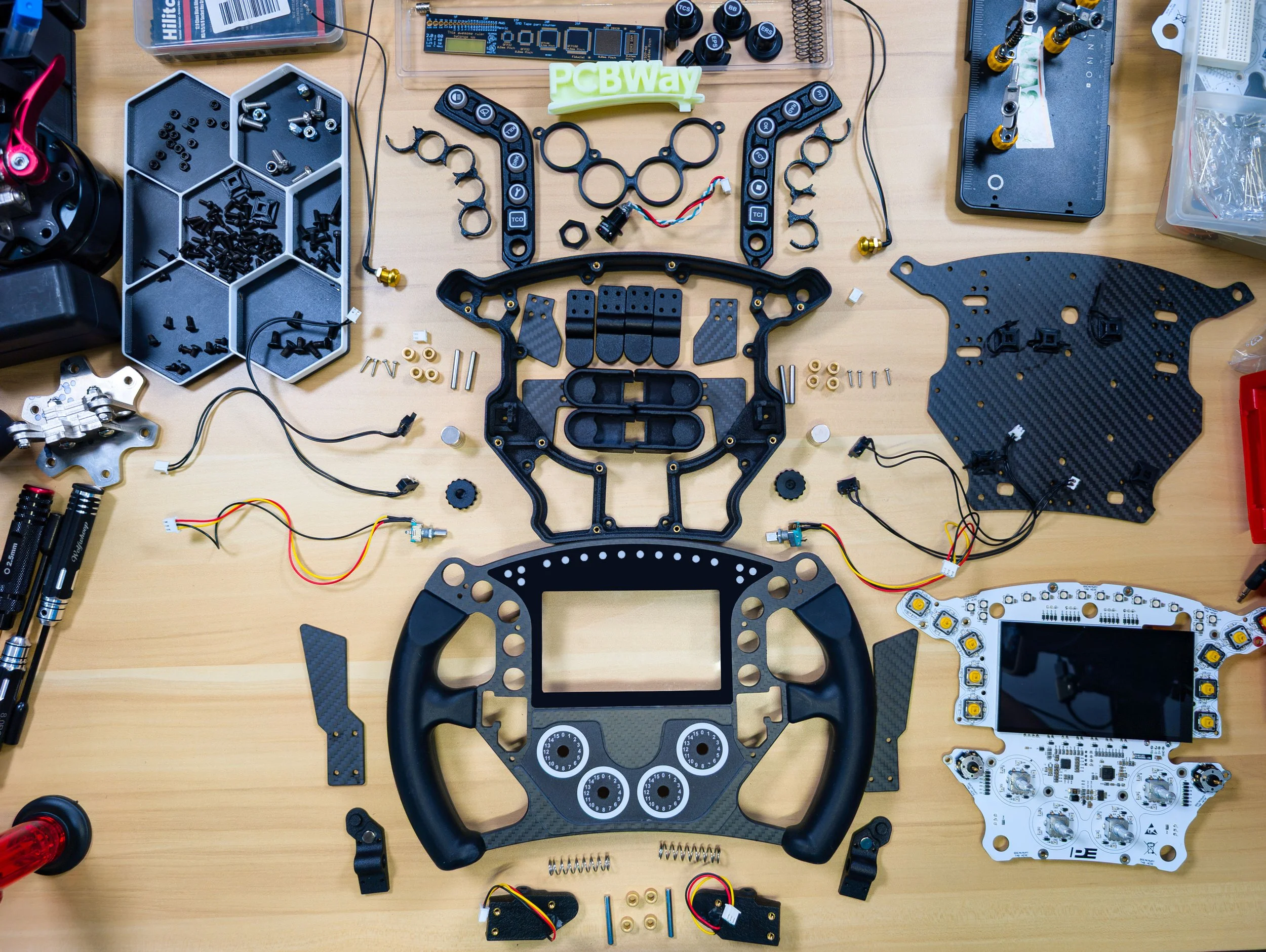

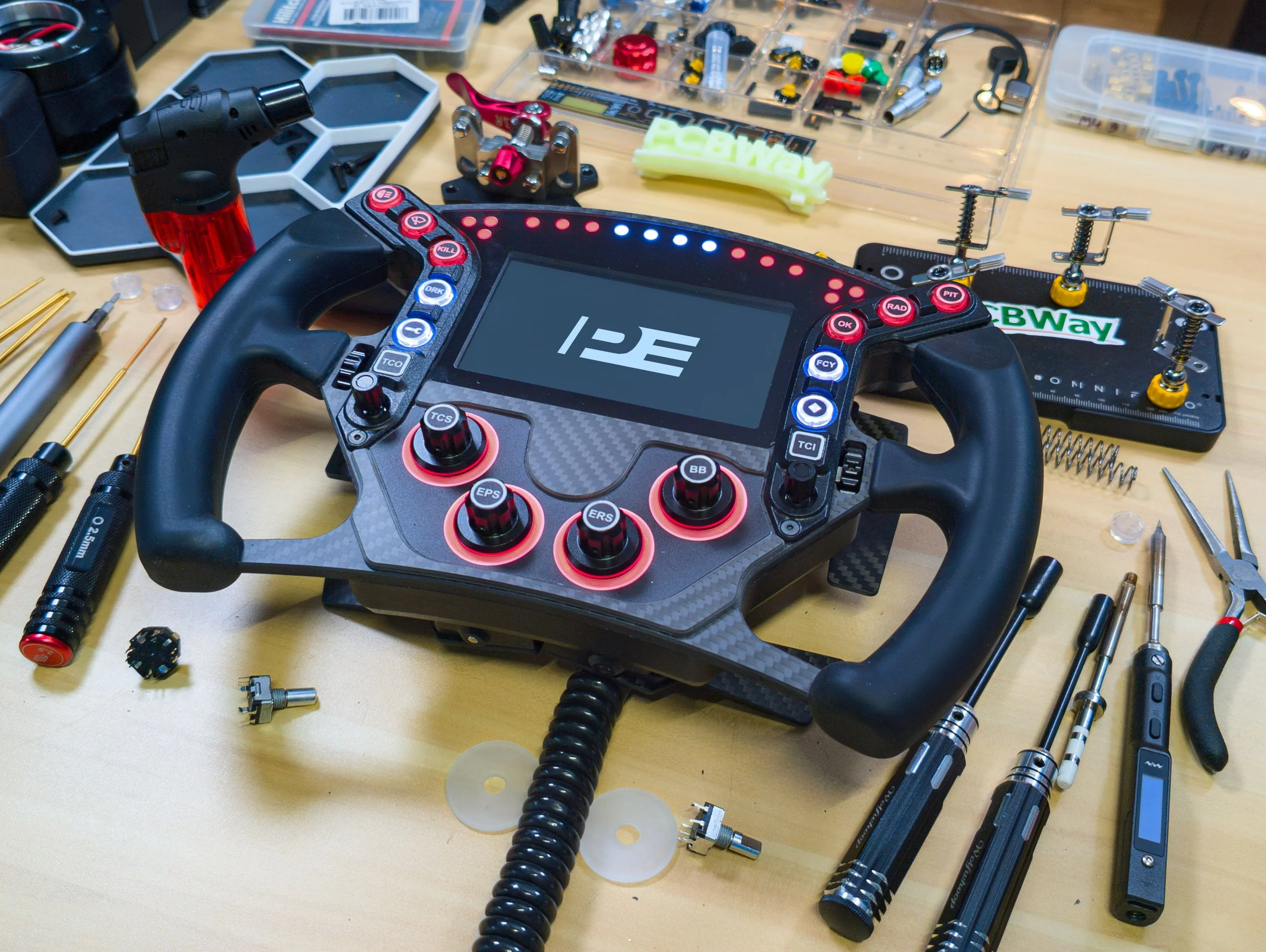

This premium build 3DP parts were sourced in partnership with PCBWay :

  • High-quality SLS and resin 3D printed parts

  • PCB manufacturing and assembly

If you don’t have access to:

  • High-end 3D printers

  • Soldering equipment for SMD components

Services like this allow you to still build a professional-quality wheel. PCBWay offered the 3DP parts for free. This was not a paid sponsorship.

Plates

Part Option 1 Option 2
Plate Bundles - GDCTECH Aliexpress - View
Front Plate w/ Silicone Grips PE - View
Back Plate PE - View
Paddles PE - View
Front Convers PE - View

Hardware

Part Option 1 Option 2
PE Hardware Kit PE - View
M4 Standoffs Aliexpress - View
M4 Heatset Inserts Aliexpress - View
M3 Heatset Inserts Aliexpress - View
M3 Nut Aliexpress - View
M4 Nut Aliexpress - View
M3x10 FHCS Aliexpress - View
M5x12 BHCS Aliexpress - View
M2x10 BHCS Aliexpress - View
M3x6 BHCS Aliexpress - View
M3x8 BHCS Aliexpress - View
M3x18 FHCS Aliexpress - View
M3x10 FHCS Aliexpress - View
M3x12 FHCS Aliexpress - View
M3x5 Set Screw (Rotaries) Aliexpress - View
M3x5 Set Screw (Funky) Aliexpress - View
M4x16 SHCS Aliexpress - View
M4x16 SHCS Aliexpress - View
Clutch/Shifter Flanged Bearings Aliexpress - View
Clutch Springs Aliexpress - View
Clutch Magnets Aliexpress - View
Shifter Magnets Aliexpress - View
